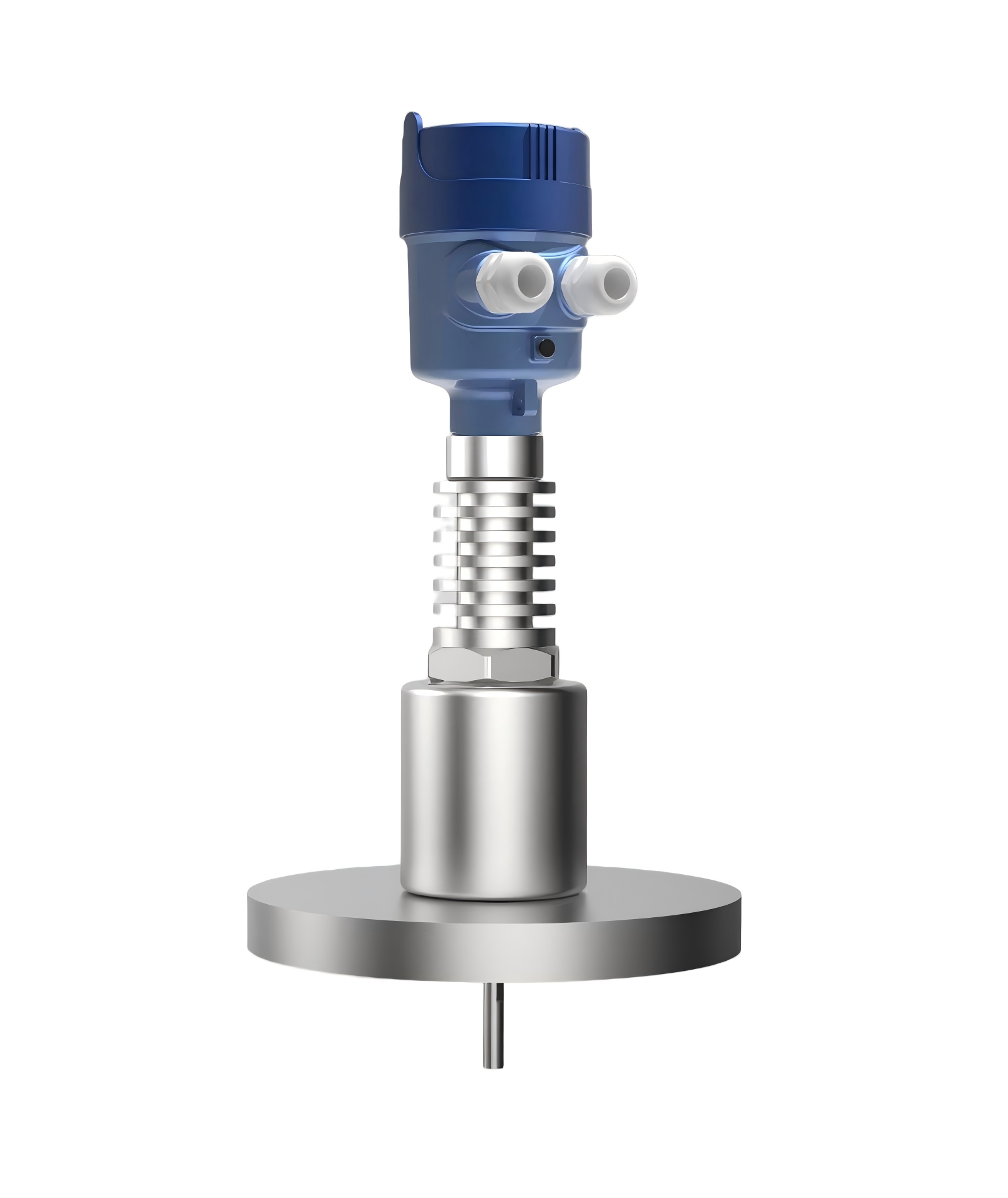

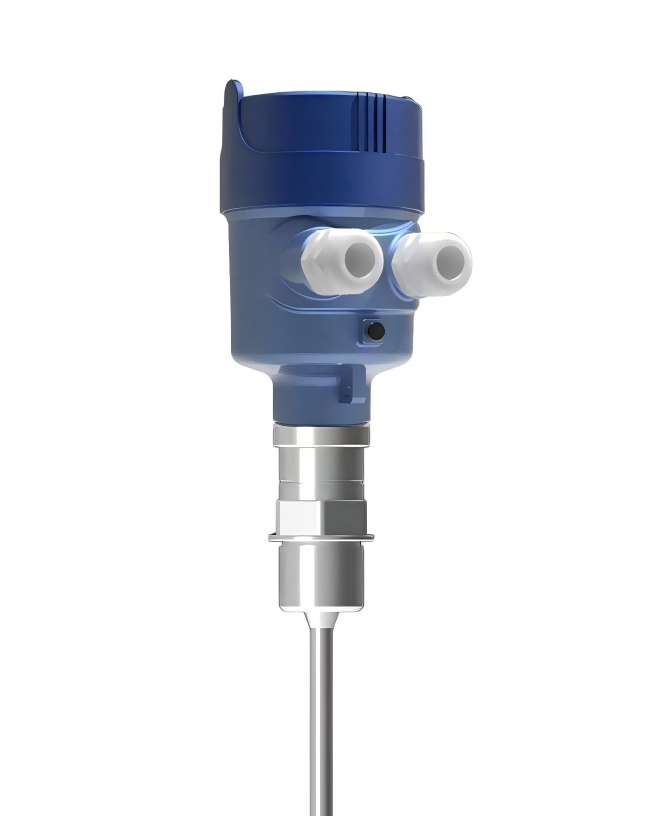

GWR013X Guided wave radar level transmitter

Features
● Built-in algorithms for different harsh conditions
● Can output data such as level, volume, weight and flow rate
● High accuracy to +/- 2 mm, tested at NIM (National Institute of Metrology, China).
● The dead band is less than 2 mm
● Can measure the upper and lower interface of two immiscible mediums.
● Can calibrate for up to 101 points via the PC software
● Process temperature -196~+450℃
● Process pressure -1~+400 bar

GWR013X series Guided wave radar level transmitters based on TDR (Time Domain Reflectometry) principle are universally applicable in liquid, interface, slurry and solid. It can work with rope, rod and coaxial versions of probes. Under harsh process conditions, even in condensation, foam, adhesion, crystallization and steam conditions, guided wave radar can work well. We developed professional algorithms for liquid with upper and lower layers, large amounts of saturated water vapor and other conditions to ensure the stable measurement in weak signals and multi-interference conditions.
Through the nonlinear output function, guided wave radar can change the output signal into volume, weight, flow and other data in tank measurement.
